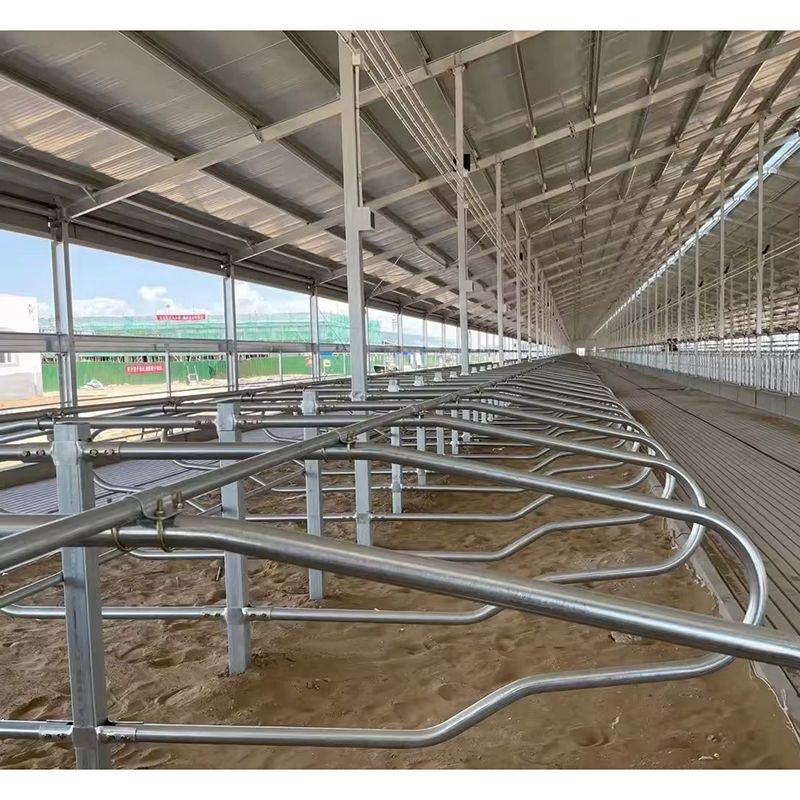

cow lying bed with free stalls lying for cattle farm

The freestall (cow lying bed) partitions and neck rails are made of hot-dip galvanized materials, while clamps and other support components are made of Q235A material and undergo hot-dip galvanizing for corrosion protection. The overall structure is strong and durable. The horizontal spacing of the freestall partition bars is 1.2 meters, and dimensions and layout can be flexibly customized according to the age and body size of the cattle.

design concept and functions of the cow lying bed:

1. biomimetic design: the stall shape, width and length are biomimetically designed according to the dairy cow body shape to ensure cows lie down comfortably and naturally, promoting restorative rest.
2. freestall positioning: through the proper arrangement of the neck rail and brisket board, cows are guided to the correct position when standing and lying down, which helps keep the stall clean, protects the animal body and udder hygiene, and reduces the incidence of mastitis.
3. individualized adjustment: stall dimensions and angles can be customized for different breeds and production stages (dry cows, pregnant cows, postpartum cows, etc.) to meet the needs of different herds.

materials and workmanship of the cow lying bed:

1. hot-dip galvanized steel pipe: the pipes use an internal and external hot-dip galvanizing process in which the coating penetrates the pipe body, providing excellent corrosion and acid resistance and long durability; guaranteed not to rust for up to 20 years.
2. Q235A support parts: clamps and other load-bearing support components are made of Q235A material and hot-dip galvanized for corrosion protection, offering high strength and reliability.
3. cold-formed integrated process: cold-formed, one-piece manufacturing eliminates welded joints, reducing the risk of rust and deformation and improving overall structural stability and appearance.
4. solid anchoring: freestalls are typically fixed in place by cast-in-place concrete to ensure firm, durable installation.

structure and dimension notes for the cow lying bed:

1. partition bar horizontal spacing: standard is 1.2 meters and can be adjusted according to the facility and cow dimensions.
2. flexible sizing: stall length, width and leg height can be designed according to the cow age and body shape to facilitate lying down and getting up without interference.
3. neck rail accessories: equipped with adjustable neck rails and cow rest fittings to precisely position the cow when lying on the stall.

main benefits and advantages of the cow lying bed:

1. improved sleep quality and milk yield: by providing each dairy cow with an independent, clean and comfortable resting area, lactating cows can maintain 12–14 hours of rest per day, which increases milk yield and milk quality.
2. reduced incidence of disease: good stall design and proper positioning reduce the risk of mastitis, teat injuries and other health issues.
3. long service life: hot-dip galvanizing and cold-forming processes ensure the structure resists rust, tearing and deformation during long-term use.
4. easy installation and maintenance: simple structural design enables quick assembly, requires less maintenance and lowers operating costs.
5. wide applicability: suitable for dairy cows, beef cattle and native cattle, and for various production stages such as dry, pregnant and postpartum cows.

structural configuration and safety:

1. neck rail and brisket board combination: ensures cows assume the correct position when transitioning between standing and lying, facilitating stall cleanliness and animal hygiene.
2. fixing method: stalls can be fixed by cast-in-place concrete for secure, long-term stability.
3. human- and animal-friendly: dimensions and edge designs prioritize safety to reduce the risk of injury to cattle.

application scenarios for the cow lying bed:

1. freestall areas in modern dairy farms and large-scale operations.
2. stall configurations for dairy barn renovations and new construction.
3. farms that need to improve cow comfort, reduce disease incidence and increase production efficiency.

materials and features of the cow lying bed:

1. hot-dip galvanized steel pipe: galvanized inside and out, corrosion- and acid-resistant, long service life, guaranteed not to rust for 20 years.
2. Q235A support parts: high strength, hot-dip galvanized, corrosion-resistant and with good load-bearing capacity.
3. cold-formed one-piece: no welded joints, reducing weld corrosion and stress concentration for a more stable structure.
4. customizable: stall spacing, length, width and leg height can be customized according to cow morphology and barn layout.
5. easy cleaning and maintenance: designed to facilitate manure removal and cleaning, keeping stalls dry and hygienic.
